REAR PANEL - FR85041 RECEIVER

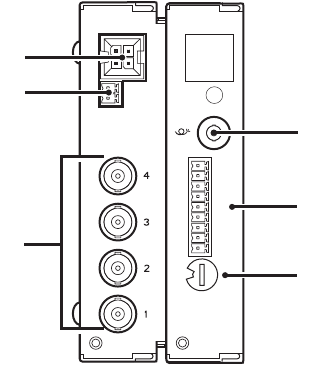

Figure 5 illustrates the rear panel of the FR85041 receiver.
Figure 5.
Rear Panel of FR85041 Receiver
For additional information about rear-panel connections and about the Data Selection switch, refer to
the
Installation
section.
ᕡ
RACK POWER/ALARM CONNECTOR, 4-pin connector for power/alarm connection of rack-
mounted module
ᕢ
STAND-ALONE POWER CONNECTOR, 2-pin connector for power connection of stand-alone
module; removable mating connector with screw terminals (not shown)
ᕣ
VIDEO OUT CONNECTORS 1-4, 75-ohm BNC analog video output
ᕤ
FIBER OPTIC CONNECTOR, ST or FC (dependent on FR85041 model)
ᕥ
DATA CONNECTOR, 9-pin connector; removable mating connector with screw terminals (not
shown)
ᕦ
DATA SELECTION SWITCH, 10-position rotary switch (positions 0-9)
ᕣ
1
2
3
4
5
6
7
8
GND
ᕦ
ᕤ
ᕡ
ᕢ
ᕥ
0
1
2
3
4
5
6
7
8
9
