First steps
Gigaset SE366 WLAN / englisch / A31008-M1063-R101-4x-7619 / device.fm / 13.11.2008
Schablone 2004_12_27
sible (see page 39) and perform the WPS registration for the clients using a PIN
(see page 68).
Additional options for WPS registration are described on page 68.
Connecting PCs in wired mode
If you are not using WPS, we recommend that you first connect the device to a PC using
an Ethernet cable. Depending on use, you will first have to make some settings via the
browser-based configuration program of your Gigaset SE366 WLAN.

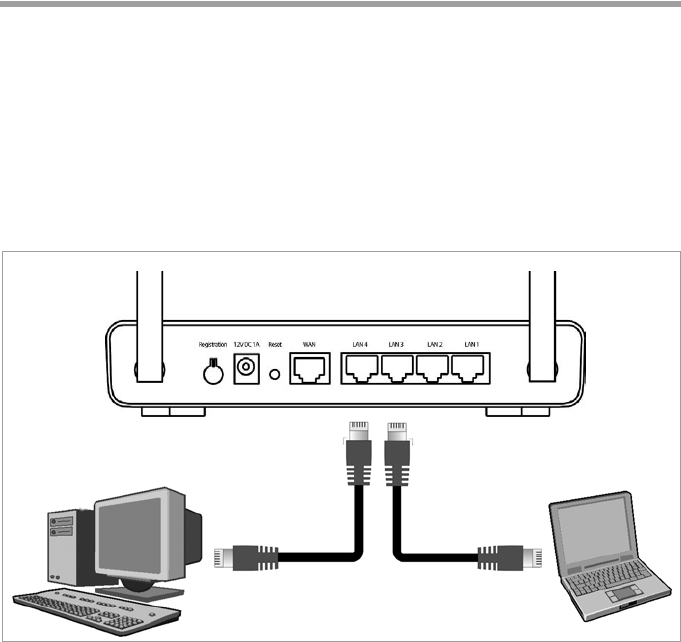

ì Connect one of the yellow LAN sockets (LAN1 – LAN4) at the rear of the Gigaset
SE366 WLAN to the Ethernet connection on a PC. To do this, use an Ethernet cable
with RJ45 jacks. You can also use the yellow Ethernet cable supplied with the device.
The four LAN connections can automatically set the transmission speed to 10 Mbps
Ethernet or 100 Mbps Fast Ethernet, and the transmission mode to Half duplex or
Full duplex depending on the performance of the network adapter in your PC.
