CLEARVU4 2

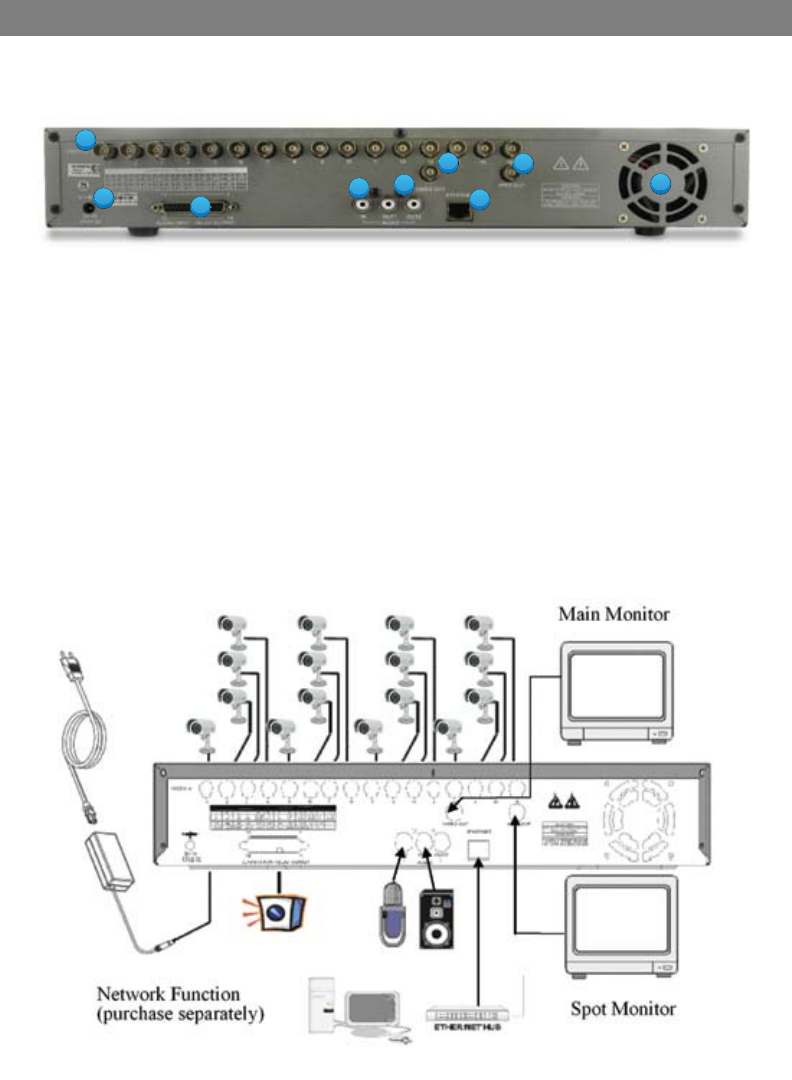

2.2 Rear Panel
1. BNC Video Inputs – Connects the cameras to the DVR
2. Power Input – DC power input (12V)
3. Alarm Input/Output Port
4. RCA Audio Input – For connecting a microphone/audio supported camera (not included)
5. RCA Audio Output – For connection to your TV/monitor
6. BNC Video Output – For connection to your TV/monitor
7. Ethernet Port – For connection to your local area network and Internet
8. BNC SPOT Video Output – Additional connection to your TV/monitor, only displays
video when motion recording is activated
9. Cooling Fan
3. INSTALLATION
1
2
3
9
6
7
84 5
12 13
14
15 16
17
18
10 11
1
2
3
9
6
7
8
4
5
