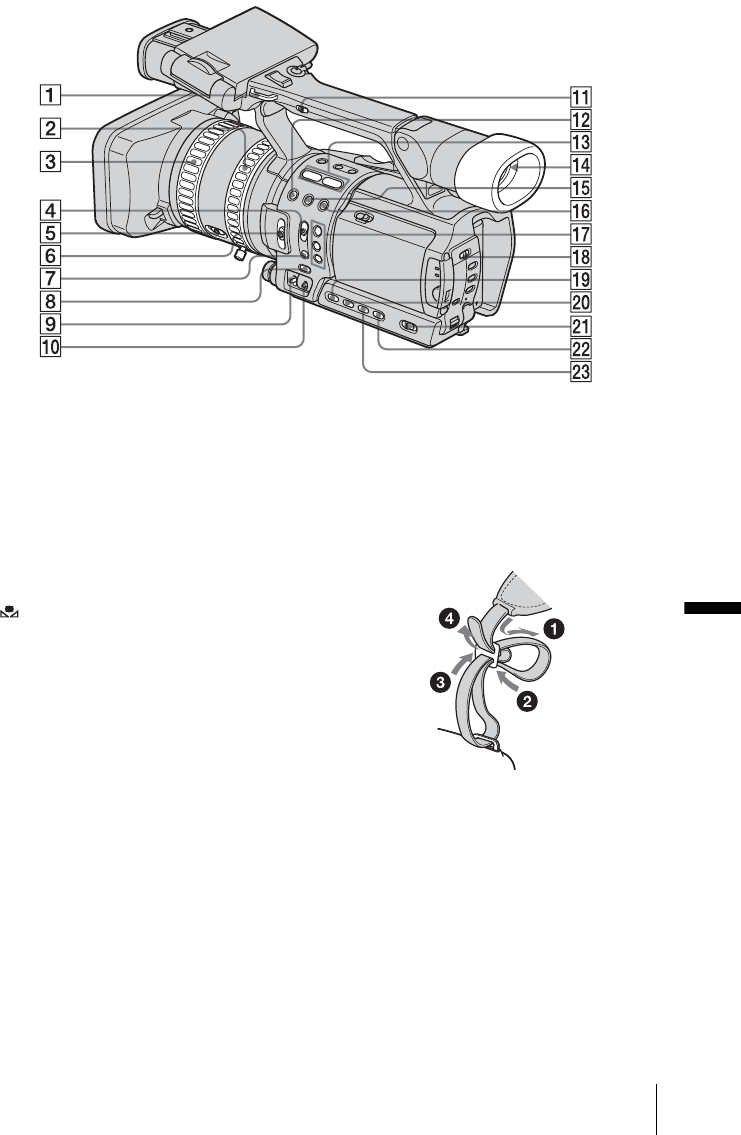

A Hook for the shoulder strap
B Zoom ring (p. 23)
C Focus ring (p. 32)
D FOCUS switch (AUTO/MAN (manual)/
INFINITY) (p. 32)
E ZOOM switch (p. 22)
F ND FILTER switch (1/2/OFF) (p. 30)
G PUSH AUTO button (p. 33)
H WHT BAL (One-push white balance)
button (p. 26)
I GAIN switch (H/M/L) (p. 28)
J WHT BAL (white balance) switch (A/B/
PRESET) (p. 26)
K Handle zoom switch (H/L/OFF) (p. 22)
L REC REVIEW button (p. 41)
M Format lamps (p. 20)
N Viewfinder (p. 3, 15)
O BACK LIGHT button* (p. 25)
P SPOT LIGHT button (p. 25)
Q ASSIGN buttons (1/2/3)* (p. 68)
R ZEBRA/PEAKING switch (p. 31, 33)
S IRIS button (p. 28)
T GAIN button* (p. 28)
U AUTO LOCK switch (p. 26, 28, 29)
V WHT BAL (white balance) button (p. 26)
W SHUTTER SPEED button (p. 29)
* Each of the buttons has a raised tactile dot. (The
ASSIGN button has it on the 2 button.) Use it to
identify the location of the buttons.
To attach the shoulder strap
Attach the shoulder strap supplied with your
camcorder to the hooks for the shoulder strap.
,continued
