AXIS P1355 Network Camera
Technical Specifications

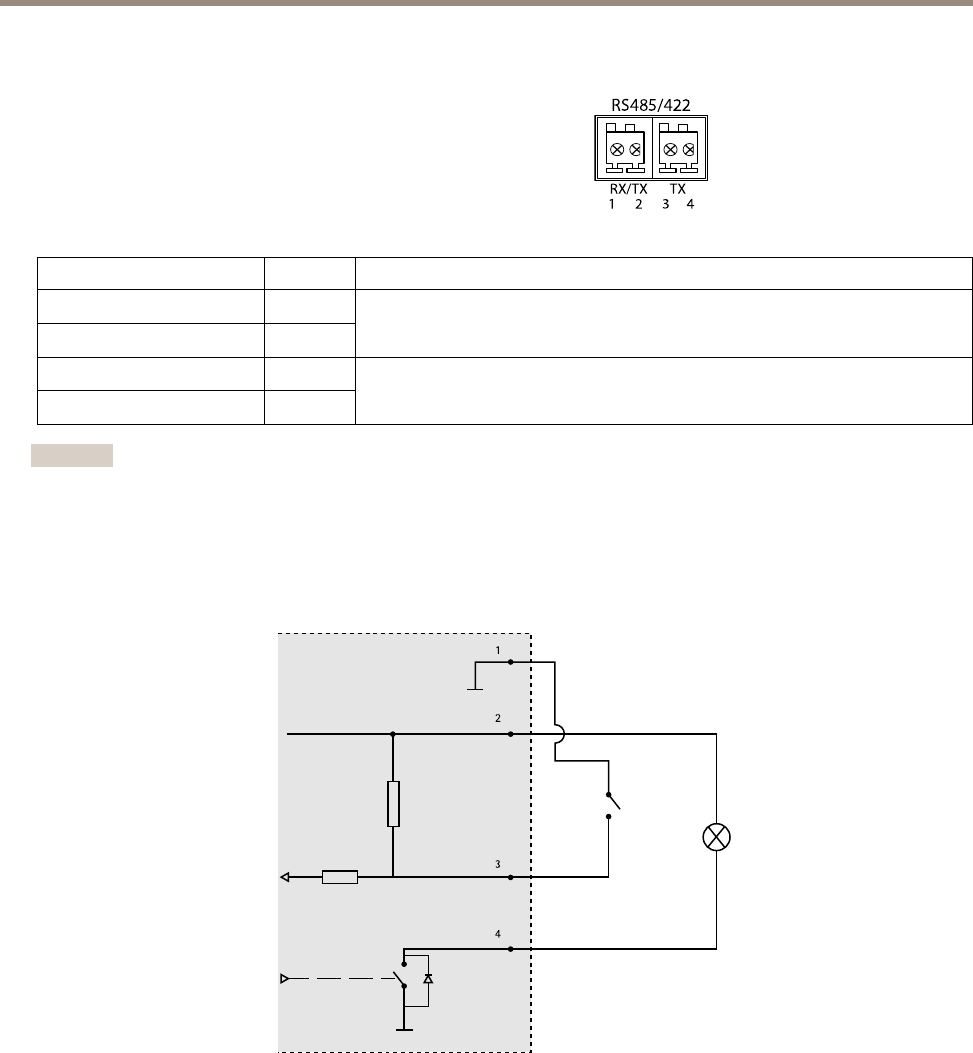

RS485/422 Connector
Two 2-pin terminal blocks for RS485/RS422 serial interface. The serial
port can be congured to support:
• Two-wire RS485 half duplex
• Four-wire RS485 full duplex
• Two-wire RS422 simplex
• Four-wire RS422 full duplex point to point communication
RS485/422
1 2
RX/TX TX
3 4
Function Pin Notes
RS485B alt RS485/422 RX(B)
1
RS485A alt RS485/422 RX(A)
2
RX pair for all modes (combined RX/TX for 2-wire RS485)
RS485/RS422 TX(B)
3
RS485/RS422 TX(A)
4
TX pair for RS422 and 4-wire RS485
Important
The recommended maximum cable length is 30 m (98.4 ft).
Connection Diagrams
I/O Connector
1
2
3
4
1
0 V DC (-)
2
DC output 3.3 V, max 50 mA
3
Digital input 0 to max 40 V DC
4
Digital output 0 to max 40 V DC, open drain, 100 mA
Performance Considerations
When setting up your system, it is important to consider how various settings and situations will affect performance. Some factors
affect the amount of bandwidth (the bit rate) required, others can affect the frame rate, and some affect both. If the load on the
CPU reaches its maximum, this will also affect the frame rate.
