58 C2950M-E (8/10)
SOURCES

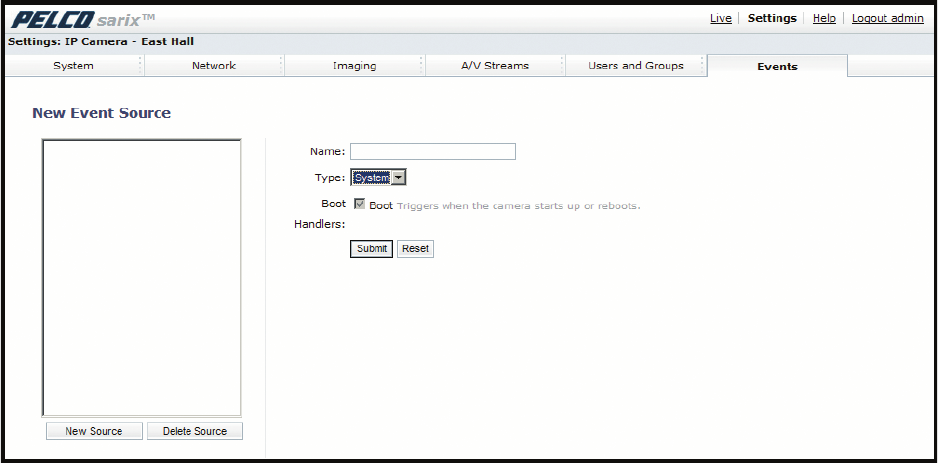

Figure 35. New Event Source Page
An event is a preprogrammed camera function that is automatically activated by an event source. The camera supports the following types of
event sources:
Alarm Source: The camera supports one alarm source. The sources are the camera inputs for external signaling devices, such as door contacts
or motion detectors.
System Source: A system source is activated when the camera restarts.
Timer Source: A timer source is a user-defined event. The user can program the timer to activate an event after a specified amount of time.
For example, the timer can be activated every 60 seconds to save an image to an SD card.
CREATING AN ALARM EVENT SOURCE
1. Place your mouse pointer over the Events tab.
2. Select Sources from the drop-down menu.
3. Click in the Name box and type a user-friendly name (2 to 23 alphanumeric characters).
4. Select Alarm from the Type drop-down menu.
5. Move the Dwell Time slider to set the amount of time in seconds that the alarm is active. The dwell time range is 0.1 to 200 seconds; the
default setting is 0.1.
6. Select either normal or reversed from the Polarity drop-down menu.
7. Select either true or false from the Supervised drop-down menu.
8. Click the Submit button to save the settings, or click the Reset button to clear all of the information you entered without saving it.
