Page 9
Installation
TM-6710/6710CL High-Speed Progressive Scanning CCD Camera
2.2.4 Attaching the Video Output (Analog Output on TM-6710 Only)
Connect a BNC cable to the output from the camera and the input to your system (frame grabber analog
input). The input of the system or monitor should be balanced for 75ohms termination.
Standard RG-59 type coaxial cable should carry a full video signal for up to 100 feet.
If you want to output the video, input the power, and sync to a camera over a single cable, you can use a
PULNiX multi-conductor cable, such as the 12P-02S. The mini coaxial leads in PULNiX multi-
conductor cables are designed for short runs of no longer than 100 feet.
Note: Make sure that no extraneous wires are visible which could cause a short.
Note: For digital output, see Section 3.3.9 on page 23.
2.2.5 Attaching the Camera Lens
The TM-6710 camera accepts standard C-mount lenses. To attach the C-mount lens to the camera,
carefully engage the threads and rotate the lens clockwise until it firmly seats on the mounting ring. Do
not force the lens if it does not seat properly. Please note that some lenses with extremely long
flangebacks may exceed the mounting depth of the camera.
2.2.6 Back-Focusing the Lens
To backfocus the TM-6710 camera, follow the steps below:
1. Attach a C-mount lens in the lens mount. Be sure that the lens is properly mounted.
2. Set the lens focus to infinity (if the lens is a manual iris, set the iris to a high f-stop while still
retaining a well-lighted image).
3. Obtain the best focus possible at this setting, then loosen two of the three miniature hex head set
screws locking the focus ring in place.
4. Now turn the entire lens and focus ring assembly back and forth until the best image is obtained.
5. Tighten the focus ring set screws. Your backfocus is now set.

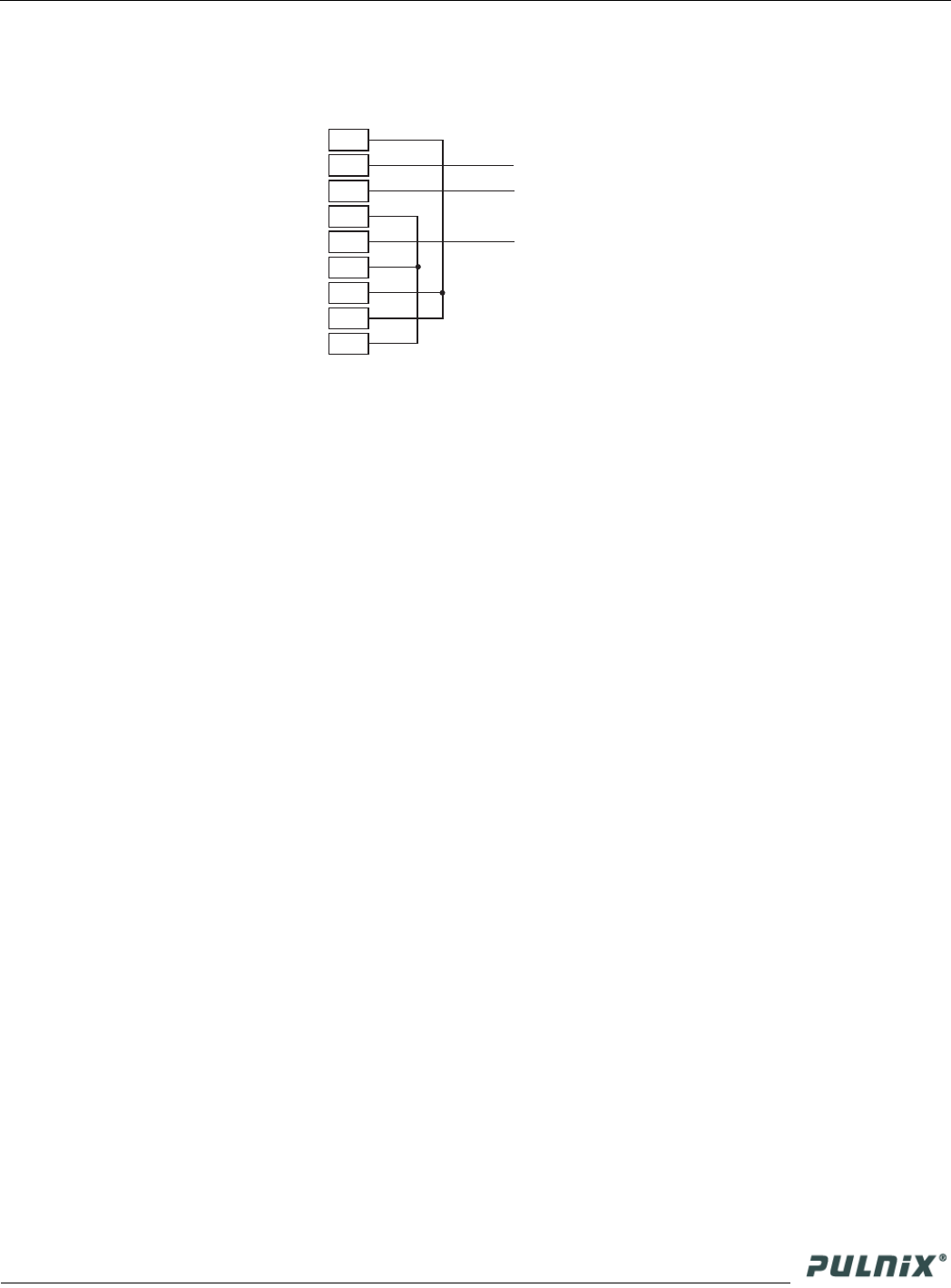

PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
To pin #12 of
12-pin female connector
To pin #10 of
12-pin female connecto
r
To pin #5 of
12-pin female connecto
r
D-Sub 9-Pin Connector
(ITEM 15-1007)
TO
COMPUTER
COM PORT
