Page 23
Operation
TM-6710/6710CL High-Speed Progressive Scanning CCD Camera
3.3.8 Video Output
3.3.8 (a) Async Reset Image Capture

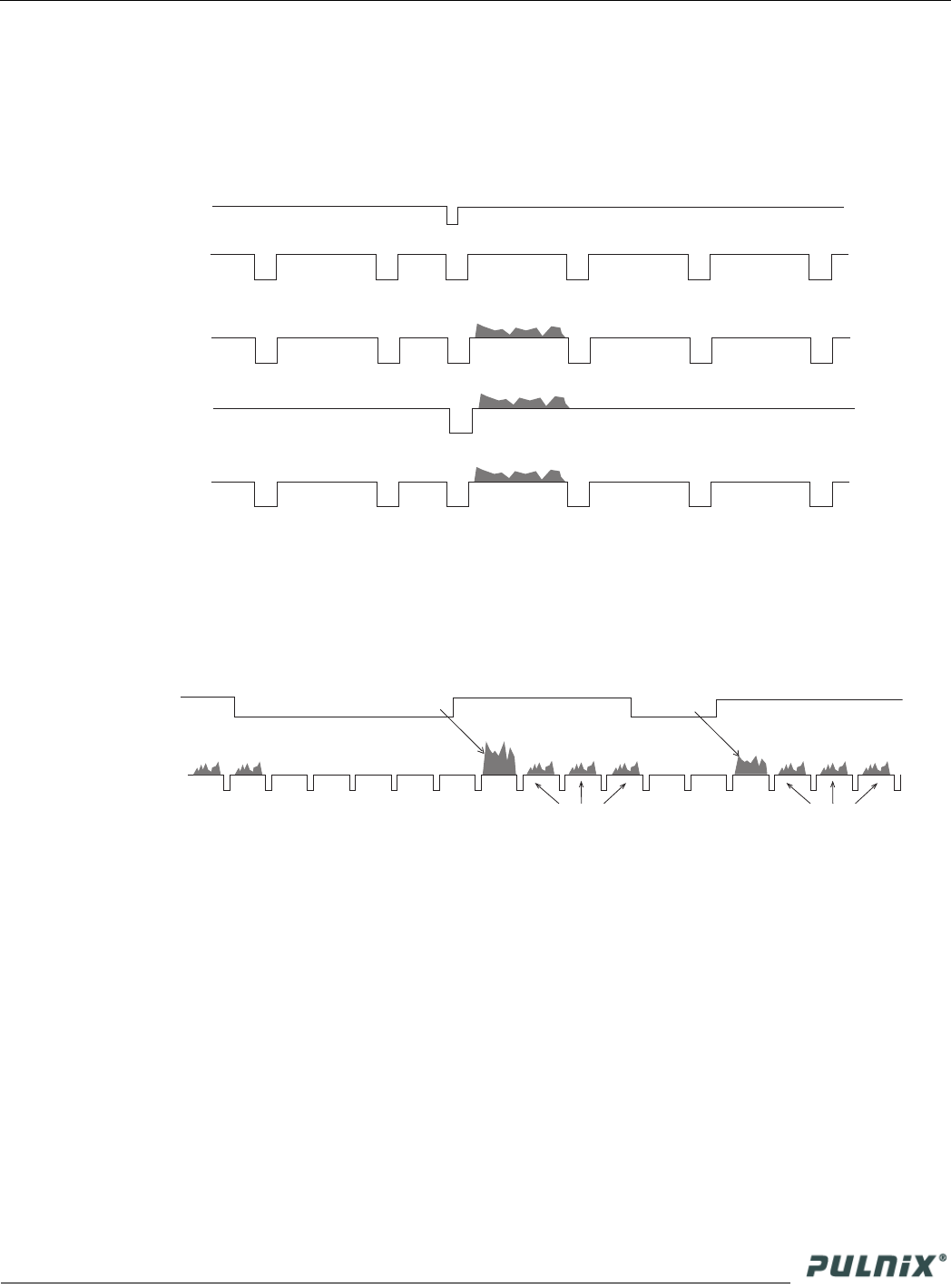

FIGURE 13. Async Reset Image Capture
3.3.8 (b) Integration Image Capture
Set the integration control (pin #11) to low for integration. Integrated video can be captured once
integration control goes back to high.
FIGURE 14. Integrated Image Capture
3.3.9 Timing
3.3.9 (a) Digital Video
Differential line-driven, 2 x 8-bit parallel signal with EIA-644 format. 100ohms output termination
impedance. Output from 51-pin connector. Mating connector: Airborne MQ3130511130000. Please
consult digital cable information, e.g., 50DG-02LP 2m cable. The TM-6710CL uses the 26CL-02-26
Camera Link cable.
3.3.9 (b) Line Data Valid
Differential line-driven signal with EIA-644 format. It is active high (+ side is higher than - side) during
the transfer of each line of data.....horizontal line readout.
CAPTURED VIDEO
VINIT
VD
ANALOG
VIDEO
DIGITAL
VIDEO
DIGITAL
VIDEO
One-shot sync
FDV (continuous sync)
Int Cont
Video
Captured Video
Captured Integrated Video
Normal
Video
Integrated
Video
Normal VideoNormal Video
