Page 20
Operation
TM-6710/6710CL High-Speed Progressive Scanning CCD Camera
Vref2) is between 1V and 0.2V. The controllable range of the reference top voltage (Vtop) is between
1.5V and 3V.
Examples:
“:”, “VT”, “7E”, CR
7EH = Vref top: 126
3AH, 56H, 37H, 45H, 36H, 0DH
Command W
Function: Write data to the selected pages or calibration
data table.
Saving to page (from 0 through 6):
“:”, “W”, “P” - “6”, CR
3AH, 57H, 41H - 36H, 0DH
(Page 0 is factory use only)
Saving the current gain setting to User Table (A) with the “WU” command:
“:”, “W”, “U”, “A”, CR
3AH, 57H, 55H, 41H, 0DH
Command L
Function: Select and read a memory page and set the preprogrammed data. This loads the data from the
preset page location or preset gain table.
“:”, “L”, “P” - “6”, CR
3AH, 4CH, 50H - 36H, 0DH
Command R
Function: Output data values of camera memory (PULNiX software is available).

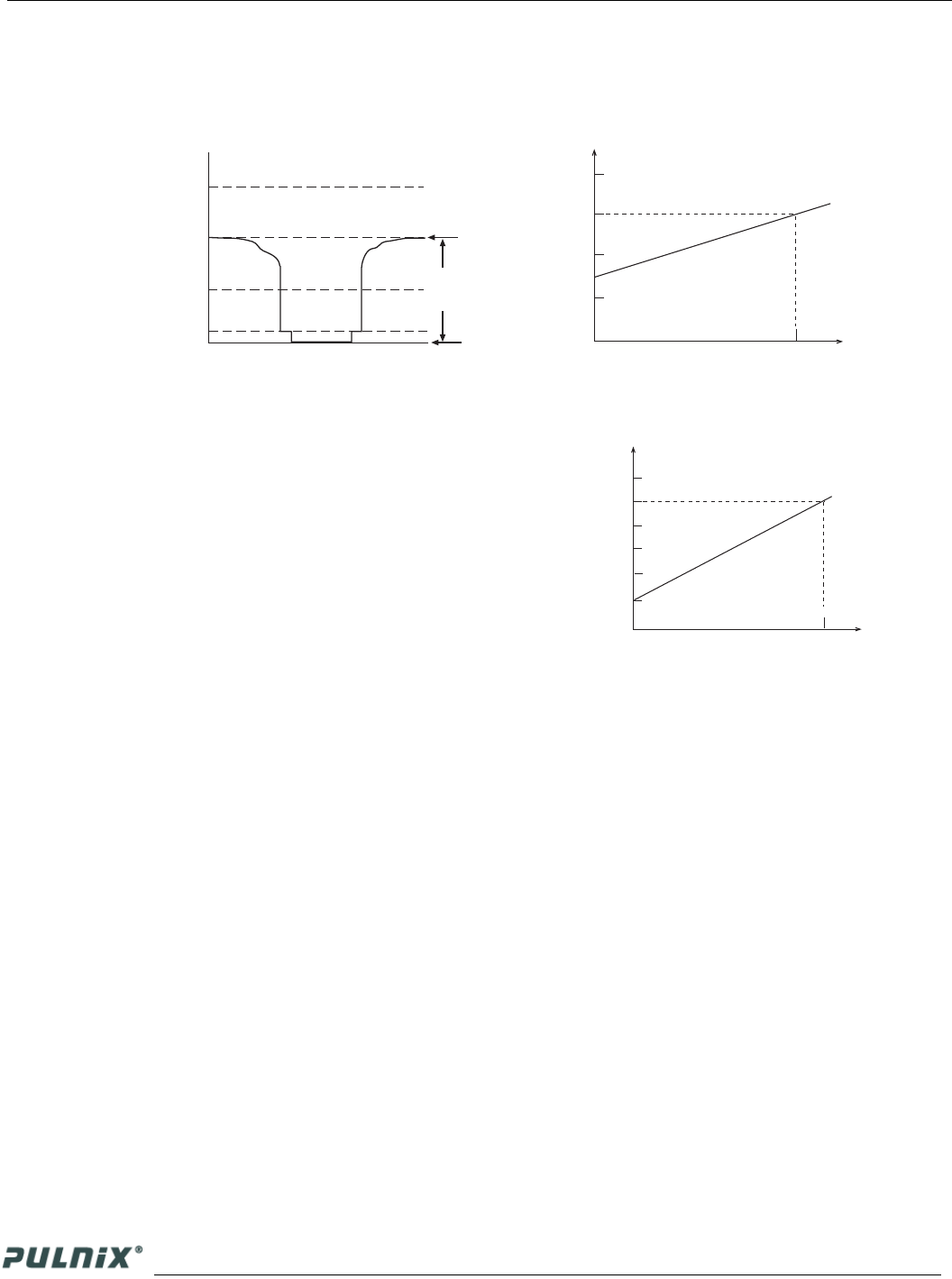

Vtop Voltage
3
2
1
Counts
4
255
0
3
2
1
0
Vbtm 0.45V
Vtop 2.15V
A/D Input
1K (10-bit)
256 (8-bit)
V
Figure 1 Figure 2
Vref (V)
1
0.6
0.2
Counts
1.2
255
0
0.4
0.8
Figure 3
