Page 25

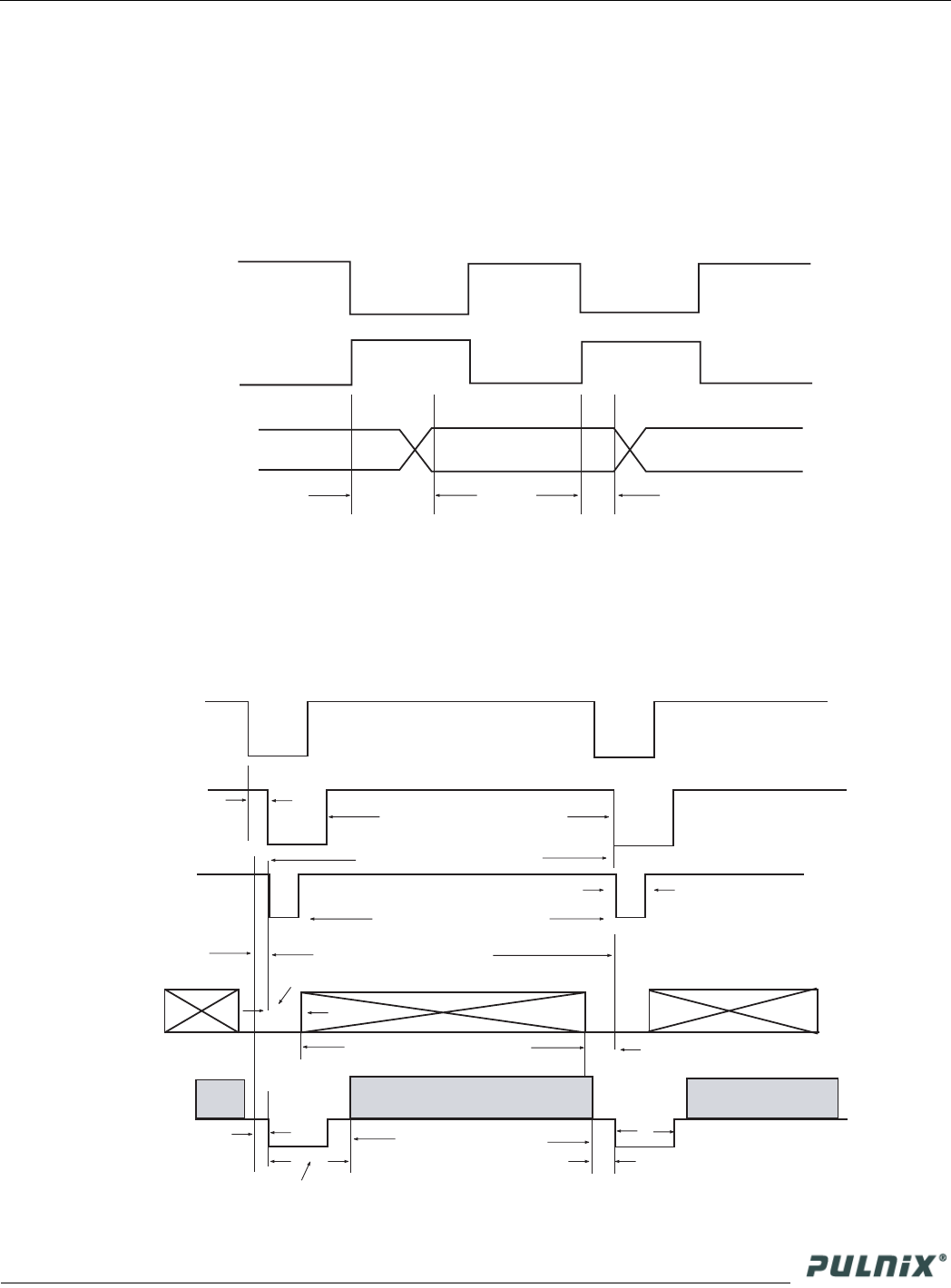

Camera Timing Charts
TM-6710/6710CL High-Speed Progressive Scanning CCD Camera
4 Camera Timing Charts
Model: TM-6710/6710CL Operation Mode: 60 Frames/Second
Master Clock: 50.98_MHz, M= 19.62_ nsec
Pixel Clock: 12.75_MHz, P= 78.46_ nsec
1. Pixel Clock and Digital Data
Tcd
Tdc
Thd
Tcd: Clock to Data Ready
Tdc: Data Ready to Next Clock
Thd: Data Hold Time
Pixel Clock
Data
A
B
Tcd = 6.7_nsec, Tdc = 71.7_nsec, Thd= 2.3_ nsec.
2. Horizontal Signals
External HD
Internal HD
LDV
Digital Data
Analog Video
fHD = [ 15.24 KHz]
tHD = [ 65.6 msec]
A [8p], (0.619msec)
C [836 P], (65.6msec)
B [759 P], (59.6msec)
F [836 P], (65.6msec)
E [694 P], (54.4msec)
D [142 P], (11.2msec)
G [1 P], (0.08msec)
H [148 P], (11.61msec)
I [648 P], (50.8msec)
J [168 P], 6.59msec)
K [648 P], ( 25.4msec)
K [20 P], (0.784msec)
M [56 P], (2.2msec)
N [25 P], (0.96msec)
J [40 P], (3.14msec)
