VIS-CAM System
48 Appendix A: Camera Functional & Connector Description
Electrical interface on the I/O board:

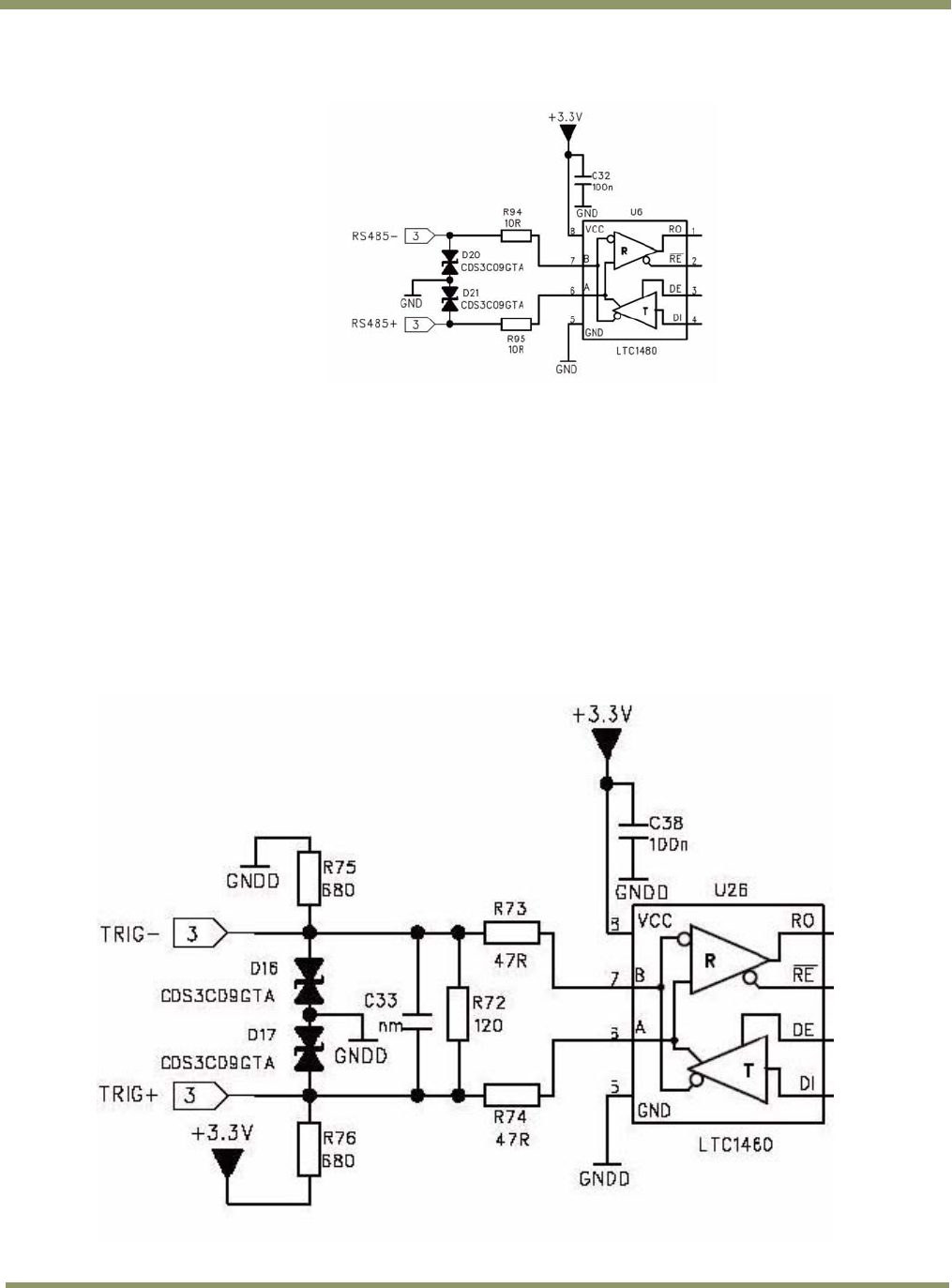

Figure 40. Interface drawing.
5.2.3 (b) Trigger input
Description
The trigger input is balanced and the input circuit is a RS485 receiver.
Signal levels
The signal levels are standard RS485 signals. The specification below is taken from Linear
Technologies datasheet for LTC1480:
The common mode range is –7 to +12V.
5.2.4 Electrical interface on the I/O board:
Figure 41. Electrical interface
